Leírás
Leírás és Paraméterek

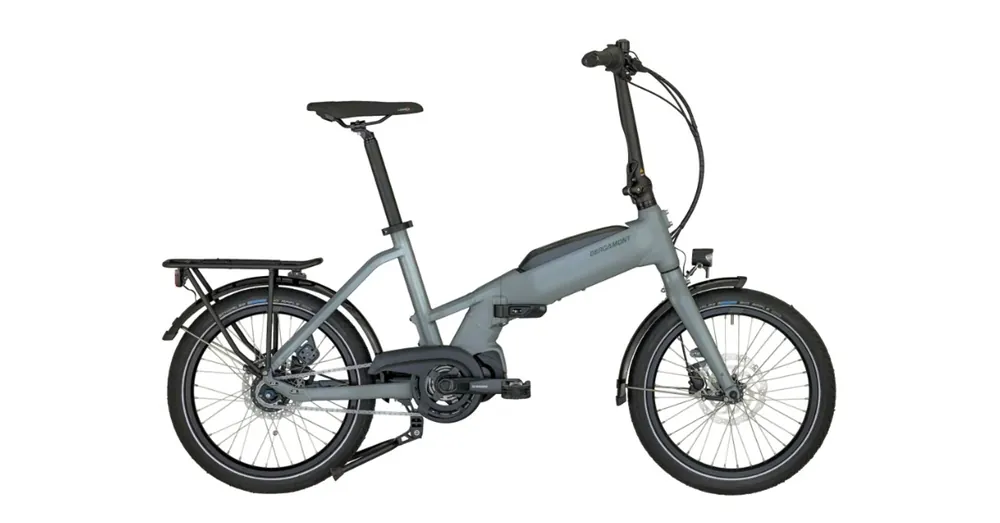

Vonzó és praktikus társ: teljes felszereltségű, stílusos unisex összecsukható e-bike, amelybe a Shimano hajtásrendszer elegánsan illeszkedik. Ideális mindennapi ingázáshoz és utazáshoztökéletesen manőverezhető, könnyen tárolható, egyszerűen kezelhető és biztonságosan vezethető.
| |
|
one size |
| A |
BB center to top of seattube : |
400 mm |
| B |
top tube parallel : |
563 mm |
| B* |
top tube horizontal : |
630 mm |
| C |
chainstay : |
423 mm |
| D |
headtube length : |
160 mm |
| E |
head angle : |
71,0 ° |
| F |
seat angle : |
72,0 ° |
| H |
BB offset : |
20 mm |
| K |
wheelbase : |
1.110 mm |
| L |
standover height : |
515 mm |
| M |
stack : |
430 mm |
| N |
reach : |
490 mm |
| |
fork length : |
330 mm |
| |
fork rake : |
40 mm |
| G |
seatpost diameter : |
33,9mm |
| I |
shock dimension : |
|
| |
headset dimension : |
ZS44/ZS44 |
| |
BB standard : |
Shimano Steps |
| |
hanger type : |
BGM-H052 |
| |
max. rotor size : |
160mm |
| Kategória : |
E-VÁROSI |
| Frame : |
20″, lite AL-6061 tubing, foldable, semi-integrated battery |
| Fork : |
BGM compact rigid fork, alloy |
| Drive Unit : |
Shimano Steps, DU-E5000, 250 W, 36 V, max. 25 km/h |
| Battery : |
Shimano BT-E8014, 36 V Li Ion, 418 Wh |
| Display : |
Shimano Steps, SC-E5000 |
| Charger : |
Shimano Charger, 2A |
| Shifters : |
Shimano Nexus, SL-C3000, 7-speed, revo-shifter |
| Crankset : |
Shimano FC-E5010, 38t |
| BB-Set : |
Shimano |
| Chain : |
KMC Z1eHX EPT |
| Cassette : |
Shimano, 16t |
| Brake Levers : |
Shimano BL-MT200, hydraulic disc brake |
| Brakes : |
Shimano BR-MT200, hydraulic disc brake |
| Rotor : |
Front:Shimano SM-RT10, 180 mm |
| : |
Rear:Shimano SM-RT10, 160 mm |
| Handlebar : |
BGM Pro, riserbar, backsweep:15°, rise:5 mm |
| H’stem : |
BGM Paul-E |
| Seatpost : |
BGM Paul-E |
| Seat : |
Selle Royal Lookin BGM |
| Headset : |
WMT, A-Headset, semi-integrated, tapered |
| Hub (Front) : |
Shimano, centerlock, disc, quick release |
| Hub (Rear) : |
Shimano Nexus, SG-C3001-7, freehub, centerlock, disc |
| Spokes : |
Sapim Leader |
| Rims : |
Ryde Andra 40, disc |
| Front Tire : |
Schwalbe Big Apple, Raceguard, reflective stripe, 50-406 |
| : |
Tube:Impac AV20 |
| Rear Tire : |
Schwalbe Big Apple, Raceguard, reflective stripe, 50-406 |
| : |
Tube:Impac AV20 |
| Lights : |
Front:Herrmans H-Black MR4, LED |
| : |
Rear:Herrmans H-Trace E, LED |
| Rack : |
BGM Paul-E carrier |
| Pedals : |
Marwi SP-153, foldable |
| Accessories : |
Kickstand:BGM kickstand |
| Approx weight in KG : |
22,5 |
| Fender : |
SKS, with stainless stays |
| Chain cover : |
SKS Chainbooster |
| Grips : |
BGM Comfort, Ergo, double density, lock-on |
| Max. System Weight : |
130,0 kg (The overall weight includes the bike, the rider, the equipment and possible additional luggage.) |
