Leírás
Leírás és Paraméterek

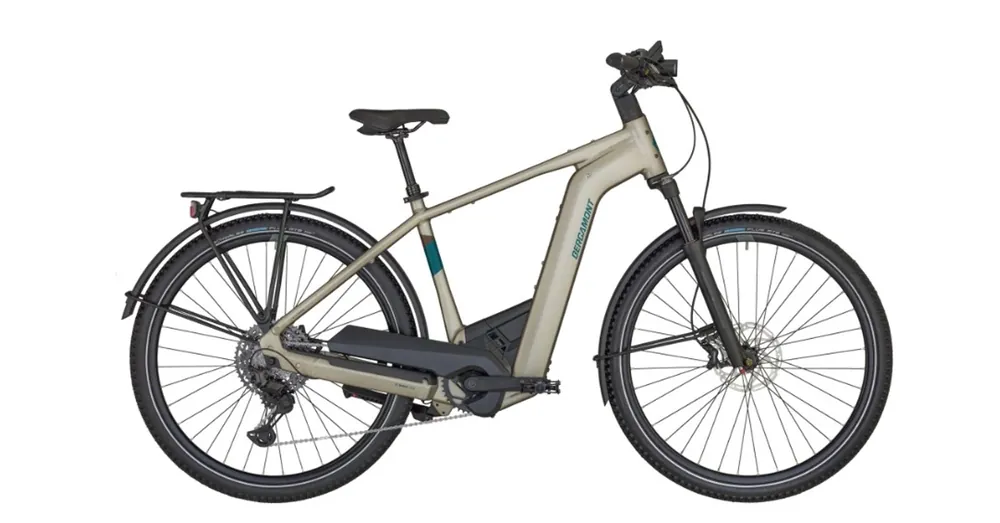

Gondolkodj nagyobban, tekerj jobban: nagyobb akkumulátor, szélesebb gumik, tökéletes integráció, kompromisszumot nem ismerő dizájnaz E-HORIZON SUV PREMIUM-mal egy mindenre képes, csúcstechnológiás és modern megjelenésű kerékpárt vezetsz, amely bármilyen terepen otthon érzi magát. Gyermekülés felszerelhető, utánfutó csatlakoztatható.
| |
|
S |
M |
L |
XL |
XXL |
| A |
BB center to top of seattube : |
455 mm : |
495 mm : |
535 mm : |
575 mm : |
615 mm |
| B |
top tube parallel : |
580 mm : |
588 mm : |
598 mm : |
609 mm : |
624 mm |
| B* |
top tube horizontal : |
605 mm : |
615 mm : |
625 mm : |
635 mm : |
645 mm |
| C |
chainstay : |
505 mm : |
505 mm : |
505 mm : |
505 mm : |
505 mm |
| D |
headtube length : |
140 mm : |
150 mm : |
160 mm : |
170 mm : |
180 mm |
| E |
head angle : |
69,0 ° : |
69,0 ° : |
69,0 ° : |
69,0 ° : |
69,0 ° |
| F |
seat angle : |
73,0 ° : |
73,0 ° : |
73,0 ° : |
73,0 ° : |
73,0 ° |
| H |
BB offset : |
-60 mm : |
-60 mm : |
-60 mm : |
-60 mm : |
-60 mm |
| K |
wheelbase : |
1.181 mm : |
1.192 mm : |
1.202 mm : |
1.213 mm : |
1.224 mm |
| L |
standover height : |
793 mm : |
820 mm : |
846 mm : |
872 mm : |
898 mm |
| M |
stack : |
649 mm : |
658 mm : |
668 mm : |
667 mm : |
687 mm |
| N |
reach : |
406 mm : |
414 mm : |
420 mm : |
428 mm : |
438 mm |
| |
fork length : |
508 mm : |
508 mm : |
508 mm : |
508 mm : |
508 mm |
| |
fork rake : |
44 mm : |
44 mm : |
44 mm : |
44 mm : |
44 mm |
| G |
seatpost diameter : |
31,6mm |
| I |
shock dimension : |
|
| |
headset dimension : |
ZS56/ZS56 |
| |
BB standard : |
Bosch Gen4 |
| |
hanger type : |
BGM-H053AB |
| |
max. rotor size : |
220mm |
| Kategória : |
E-TÚRA |
| Frame : |
28″, super lite AL-6061 tubing, BES III, PowerTube battery |
| Fork : |
Suntour Mobie 25 DS RLR, 100 mm, 15×100 mm axle |
| Drive Unit : |
Bosch Performance Line CX, Gen. 4, BES3, 250 W, 36 V, max. 25 km/h |
| Battery : |
Bosch PowerTube, 36 V Li Ion, 750 Wh |
| Display : |
Bosch LED Remote with Kiox 300 |
| Charger : |
Bosch Standard Charger, 4A |
| Rear Derailleur : |
Shimano Deore XT, RD-M8130, Shadow Plus |
| Shifters : |
Shimano Deore XT, SL-M8130, 1×11-speed, rapidfire plus-shifter |
| Crankset : |
FSA CK-745, 38t |
| BB-Set : |
Bosch, Isis |
| Chain : |
Shimano Linkglide, CN-LG500 |
| Cassette : |
Shimano Linkglide, CS-LG700-11, 11-50t |
| Brake Levers : |
Tektro HD-M745, hydraulic disc brake |
| Brakes : |
Tektro HD-M745, hydraulic disc brake, 4-piston |
| Rotor : |
Tektro TR180-35, 180 mm |
| Handlebar : |
BGM Pro, riserbar, backsweep:15°, rise:5 mm |
| H’stem : |
Satori Python, adjustable |
| Seatpost : |
Syncros Duncan, dropper post, 120 mm travel, remote |
| Seat : |
Syncros Capilano Trekking Gel |
| Headset : |
Acros, A-Headset, semi-integrated, tapered, with integrated cable routing |
| Hub (Front) : |
Shimano HB-TC500, centerlock, disc, 15×100 mm axle |
| Hub (Rear) : |
Shimano FH-UR600 centerlock, disc, quick release |
| Spokes : |
Sapim Leader |
| Rims : |
Ryde Rival 23 disc, eyelets |
| Front Tire : |
Schwalbe Marathon Plus MTB, Smart Dual Guard, reflective stripe, 54-622 |
| : |
Tube:Schwalbe AV19 |
| Rear Tire : |
Schwalbe Marathon Plus MTB, Smart Dual Guard, reflective stripe, 54-622 |
| : |
Tube:Schwalbe AV19 |
| Lights : |
Front:B&M IQ XS, 150 Lux (high beam), LED |
| : |
Rear:B&M Toplight Line brex, LED, with brake light |
| Rack : |
Racktime / BGM Trekking Pro, Snapit 2.0 System, integrated fender mount |
| Pedals : |
Trekking alloy, platform |
| Accessories : |
Kickstand:Syncros |
| Approx weight in KG : |
28,9 |
| Fender : |
Racktime Alumee |
| Chain cover : |
Integrated in motor cover |
| Grips : |
BGM Comfort, Ergo, double density, lock-on |
| Max. System Weight : |
160,0 kg (The overall weight includes the bike, the rider, the equipment and possible additional luggage.) |
